TDA2822 stereo amplifier circuit with pcb & datasheet

This is TDA2822 small stereo power amplifier.

People like TDA2822. Me too.

Why?

  • Dual Amplifiers in one DIP-8 similar for LM368.
  • Give power watts at 1W + 1W at 4 ohms speakers.
  • It is enough. We are happy Listening in our corner.
    Relax…
  • Start voltage supply of 1.8V to 15V. The wide a lot.
  • Save energy with only 6mA, Min.
  • The bandwidth expansion rates at 40dB 120kHz.
  • Cheap and easy to use

Note:
You can read more datasheet below.

It is a great idea.

You test the Arduino as a midi player. But its output is too weak.

You should increase the sound louder.

The TDA2822 is a 5V audio amplifier to this. It is one of a low voltage amplifier that is easies in the stereo system too.

Did you try it?  You may like it same me. I will show you the TDA2822 Stereo amplifier project with PCB.

TDA2822 Stereo amplifier circuit working

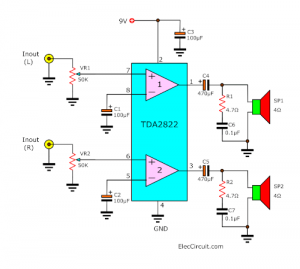

Look at the circuit diagram. It is a stereo system. Both channels are the same.

TDA2822 stereo amplifier circuit with pcb & datasheet

To begin with, the 9V from power supply—battery goes to the circuit. And, C3 is a filter capacitor to keep this voltage is more stable. When sound is too fluctuating.

Then, the stable voltage flows pin 2(Vcc) of IC1. And, negative voltage connects to GND of the circuit.

Both input signals left and the right pass VR1 and VR2. To adjust the volume of the music.

And, these capacitors C1 and C2 keep circuit stability and block DC voltage.

Next, the signal flows to inputs pin7,8 and pin 6,5 in sequent.

The circuit inside IC runs, It amplifies more power of sound.

The stronger signals come out of pin 1 (left output) and pin 3 (right output).

Also, C8 and C9 are the output capacitors to coupling the strong signals to the speakers.

And both The C6, R1 and C7, R2 reduce noise to the output.

Look: LM386 Stereo amplifier circuit

How to build this project

This project is a simple stereo amplifier in small size PCB see in Figure 2 and you can put all parts in the components layout.
tda2822-stereo-amplifier-pcb-layout
Figure 2 the PCB layout and the components layput of a stereo small amplifier using TDA2822

Stop! This is low watts for you, right?
Look:

TDA2030 Stereo Amplifier with PCB

The components list

IC1—TDA2822_DUAL POWER AMPLIFIER
Electrolytic capacitors
C1, C2—10μF 25V
C3—100μF 25V
C4, C5—470μF 25V
Polyester capacitors
C6, C7—0.1μF 63V
VR1, VR2—50K_Potentiometer
B1–3V to a 9V battery
Speaker 4Ω

Note:

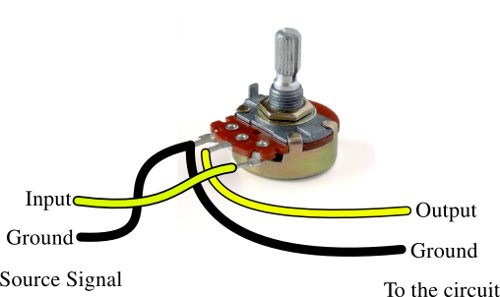

My friend asks me how to connects the potentiometer to this project.

Please look at Figure 3
to-connect-potentiometer




TDA2822 datasheet-Dual power amplifiers

This is  TDA2822 datasheet as a dual power amplifier in portable radio on DIP 8pin. We can use as stereo configuration and Mono (Bridge audio amplifier).

Features
Short features as follows:

  • The supply voltage down to 3V can use with AA 3V battery.
  • Wide supply range 3V-16V
  • Up to 2W + 2W output power(highly popular).
  • Low crossover distortion
  • Low quiescent current.

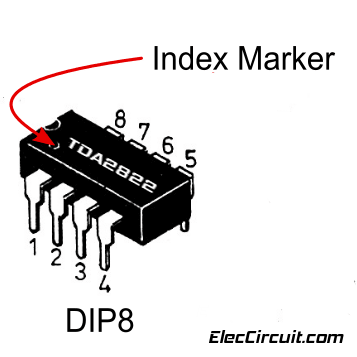

TDA2822 of DIP-8

TDA2822 Pinout

Even its shape is as same as the famous 741 op-amps circuit. But TDA2822 pinout is different. Please be careful. See!

TDA2822 pinout connection
Pin connection (top view)



TDA2822 Block diagram inside

And, inside TDA2822 has 2 Op-amps is similar for 741.  But It has a lot of components more than.

With the power amplifier section.

Testing circuit

We can test this IC with 2 basic circuits.

Look:

Stereo module and Bridge module.

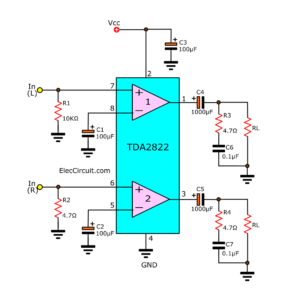

The stereo TDA2822 of typical application circuit
The stereo—output 1W + 1W of typical application circuit

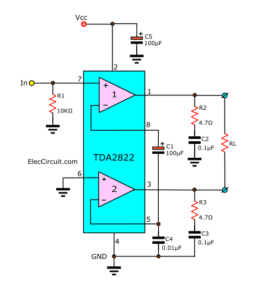

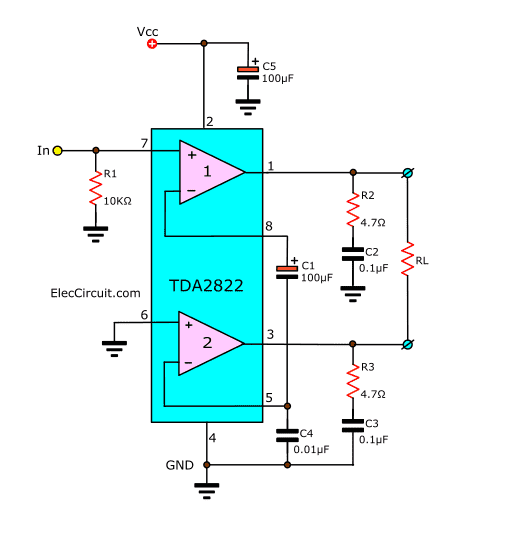

Bridge TDA2822 of typicla application circuit
The Bridge—output 4 watts max of the typical application circuit.

Although Both are a testing circuit. But you can really use. Because It can get a great output sound on 4-8 ohms speaker.
