Outdoor solar lights circuits

Chayapol is making Outdoor solar lights circuits

My son needs lighting around the house at night. But that point is no AC lines, it’s hard wiring. We happen to have the 12V battery, LED lamps and Solar cell. Thus was born the idea to create the Outdoor solar lights circuits. It saves electricity costs. The LED lamp will light up the night itself, and closed at lunchtime. The charging power from the 12V solar cell to the battery.

We use the 12V 2.5Ah battery and The LED lamp 12V 3W. It can be used for about 5-8 hour. The 12V solar cell charging is 12V 10watt. While very light, a voltage of approximately 20V at current 0.6A can use the battery.

In this solar led light circuit project, I and He together to create.

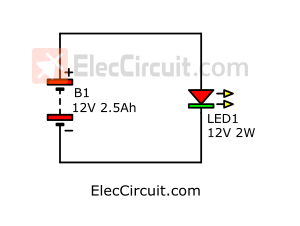

1. At night, LED lights because of the energy from the battery.
2. Lunch, the LED will turn off and the energy from the solar cell will charge to the battery fully.

100_4514

In the schematic circuit diagram, we add D1 to determine the current battery charge only one way.

simplest 12v solar charger circuit
The Simplest 12V solar cell charger circuit

And we apply the relay when the day some the current flows through the coil of the relay with D2.

simple 12v solar light circuit
The complete simple solar cell light circuit diagram

Making the contact C to NO, so no current flows through the LED. But the dark without electricity from the solar cell to coil cause the contact C to NC to connection the current so flow to LED light up. D2 is protector the current feedback from the coil relay to the solar cell.

Then we make it please see below.
100_4497

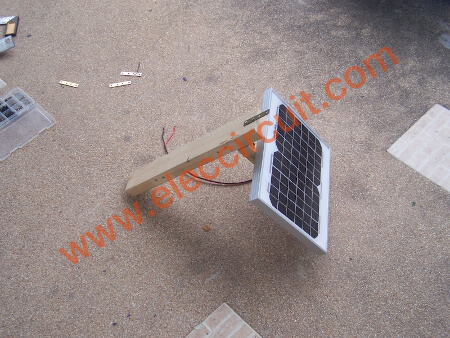

Figure 4 install the solar cell

100_4498
Figure 5 We hold the solar cell on the wood.

100_4499
Figure 6 the connection and test battery charger

Chayapol is making Outdoor solar lights circuits


Figure 7 He is wiring his super solar!

100_4501
Figure 8 He is showing his projects.

100_4502
Figure 9 next viewing

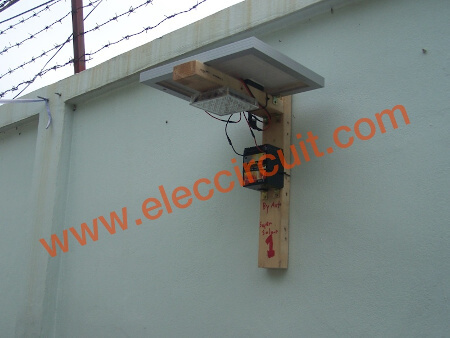

We installed this project to actually use it.
100_4503

100_4504
100_4505
100_4506
100_4511
