LM317 voltage regulator: Pinout, CALCULATOR, and circuits

Do you need to build a variable DC power supply? There are a lot of choices for you. However, many people choose LM317 as their first choice, me too!

Because It has high efficiency, is easy, and is cheaper. We can use it instead of the 1.5V, 9V, 12V battery, and others as we wish.

LM317 voltage regulator: Pinout, CALCULATOR and circuits

Is it real? You will find out how, below.

LM317 Datasheet in short

This is an adjustable 3-terminal positive voltage regulator, capable of supplying more than 1.5A of load current, and an adjustable output voltage: 1.2V to 37V range.

Also, LM317 has an internal current limiting, temperature detects shutdown, and safe area compensation.

LM317 pinout

If we do not know the position of each lead(leg), we will be unable to use it properly.
Let’s take a look at its pinout below.

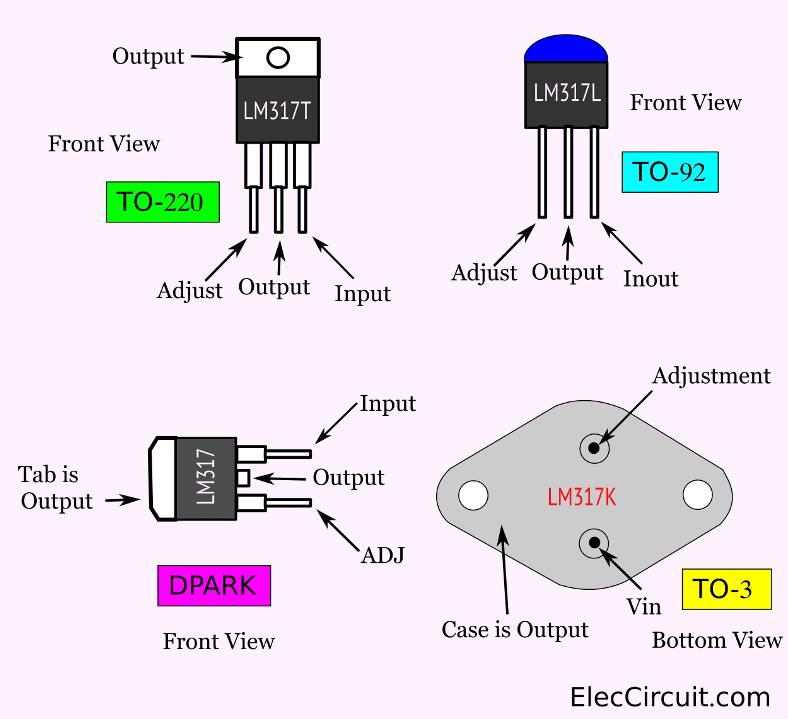

LM317 Pinout on TO-220
LM317 pinout on TO-220


LM317 pinout
LM317 pinout consists of TO-220, TO-3, TO-92, and DPARK


Illustrate connection of various LM317 Pinout:

  • LM317T on TO-220: output 1.5 A
  • LM317L on TO-92: output 100 mA
  • LM317K on TO-3: output 1.5 A
  • LM317 on DPARK: output 1.5 A

The most used package is TO-220, which looks similar to the MJE3055 transistor.

Basic Features

  • Output current in excess of 1.5 A
  • Output-Adjustable between 1.2 V to 37 V
  • Internal Short-Circuit Current Limiting or Output is short-circuit protected
  • Internal Thermal Overload Protection or Current limit constant with temperature
  • Output-Transistor Safe Operating Area Compensation
  • There are 1% output voltage Durability
  • There are max. 0.01% / V line regulation(LM317), and 0.3% load regulation (LM117)
  • There are 80 dB ripple rejection


Basic Uses of LM317

From the above, we have learned about pinout and features. Now let’s get on learning about the basic regulator circuit.

The typical circuit diagram

If the distance between the IC regulator and input voltage is too large. We should put Ci to reduce the noise. Also, we put Co at the output as well

typical application of LM317
The basic circuit diagram of LM317 or KA317

If the distance between the IC regulator and input is too large. We should put Ci to reduce the noise. Other than this, if you want a high-efficiency output. You should add Co to keep a lower ripple.

As IAdj is controlled to less than 100 uA, the little error is unimportant in most uses.

The input voltage to the LM317 must be at least 1.5 V greater than the output voltage.

Learn more: Detail of LM317 and usages

LM317 calculator

This calculator will work for most DC Voltage Regulators with a reference voltage (VREF) of 1.25. Typically, the program resistor (R1) is 240 ohms for the LM117, LM317, LM138, and LM150.

Some said Iadj is very low current.

So, we may reduce it down. To be shorter and easy.

Vout = 1.25 V x {1 + R2/ R1}

Which is better?

For example:
You use R1 = 270 ohms and R2 = 390 ohms. It causes output is 3.06 V

Is it easy? If you have voltages choice with most standard resistors. In local stores near you.

look at the list:

Output Voltage with R1 and R2 List

1.43V : R1 = 470Ω, R2 = 68Ω
1.47V : R1 = 470Ω, R2 = 82Ω
1.47V : R1 = 390Ω, R2 = 68Ω
1.51V : R1 = 330Ω, R2 = 68Ω
1.51V : R1 = 390Ω, R2 = 82Ω
1.52V : R1 = 470Ω, R2 = 100Ω
1.53V : R1 = 390Ω, R2 = 82Ω
1.56V : R1 = 330Ω, R2 = 82Ω
1.57V : R1 = 270Ω, R2 = 68Ω
1.57V : R1 = 470Ω, R2 = 120Ω
1.57V : R1 = 390Ω, R2 = 100Ω
1.59V : R1 = 390Ω, R2 = 100Ω
1.60V : R1 = 240Ω, R2 = 68Ω
1.63V : R1 = 330Ω, R2 = 100Ω
1.63V : R1 = 270Ω, R2 = 82Ω
1.64V : R1 = 390Ω, R2 = 120Ω
1.64V : R1 = 220Ω, R2 = 68Ω
1.65V : R1 = 470Ω, R2 = 150Ω
1.66V : R1 = 390Ω, R2 = 120Ω
1.68V : R1 = 240Ω, R2 = 82Ω
1.71V : R1 = 330Ω, R2 = 120Ω
1.71V : R1 = 270Ω, R2 = 100Ω
1.72V : R1 = 220Ω, R2 = 82Ω
1.72V : R1 = 180Ω, R2 = 68Ω
1.73V : R1 = 470Ω, R2 = 180Ω
1.73V : R1 = 390Ω, R2 = 150Ω
1.76V : R1 = 390Ω, R2 = 150Ω
1.77V : R1 = 240Ω, R2 = 100Ω
1.81V : R1 = 270Ω, R2 = 120Ω
1.82V : R1 = 150Ω, R2 = 68Ω
1.82V : R1 = 330Ω, R2 = 150Ω
1.82V : R1 = 180Ω, R2 = 82Ω
1.83V : R1 = 390Ω, R2 = 180Ω
1.84V : R1 = 470Ω, R2 = 220Ω
1.86V : R1 = 390Ω, R2 = 180Ω
1.88V : R1 = 240Ω, R2 = 120Ω
1.89V : R1 = 470Ω, R2 = 240Ω
1.93V : R1 = 330Ω, R2 = 180Ω
1.93V : R1 = 150Ω, R2 = 82Ω
1.94V : R1 = 270Ω, R2 = 150Ω
1.96V : R1 = 390Ω, R2 = 220Ω
1.97V : R1 = 470Ω, R2 = 270Ω
1.99V : R1 = 390Ω, R2 = 220Ω
2.02V : R1 = 390Ω, R2 = 240Ω
2.03V : R1 = 240Ω, R2 = 150Ω
2.06V : R1 = 390Ω, R2 = 240Ω
2.08V : R1 = 330Ω, R2 = 220Ω
2.10V : R1 = 220Ω, R2 = 150Ω
2.12V : R1 = 390Ω, R2 = 270Ω
2.13V : R1 = 470Ω, R2 = 330Ω
2.16V : R1 = 330Ω, R2 = 240Ω
2.16V : R1 = 390Ω, R2 = 270Ω
2.19V : R1 = 240Ω, R2 = 180Ω
2.23V : R1 = 470Ω, R2 = 390Ω
2.25V : R1 = 150Ω, R2 = 120Ω
2.27V : R1 = 270Ω, R2 = 220Ω
2.27V : R1 = 330Ω, R2 = 270Ω
2.29V : R1 = 470Ω, R2 = 390Ω
2.29V : R1 = 180Ω, R2 = 150Ω
2.31V : R1 = 390Ω, R2 = 330Ω
2.36V : R1 = 270Ω, R2 = 240Ω
2.37V : R1 = 390Ω, R2 = 330Ω
2.40V : R1 = 240Ω, R2 = 220Ω
2.44V : R1 = 390Ω, R2 = 390Ω
2.50V : R1 = 470Ω, R2 = 470Ω
2.57V : R1 = 390Ω, R2 = 390Ω
2.61V : R1 = 220Ω, R2 = 240Ω
2.65V : R1 = 330Ω, R2 = 390Ω
2.66V : R1 = 240Ω, R2 = 270Ω
2.73V : R1 = 330Ω, R2 = 390Ω
2.74V : R1 = 470Ω, R2 = 560Ω
2.75V : R1 = 150Ω, R2 = 180Ω
2.76V : R1 = 390Ω, R2 = 470Ω
2.78V : R1 = 270Ω, R2 = 330Ω
2.78V : R1 = 220Ω, R2 = 270Ω
2.84V : R1 = 390Ω, R2 = 470Ω
2.92V : R1 = 180Ω, R2 = 240Ω
2.96V : R1 = 270Ω, R2 = 390Ω
2.97V : R1 = 240Ω, R2 = 330Ω
3.03V : R1 = 330Ω, R2 = 470Ω
3.05V : R1 = 390Ω, R2 = 560Ω
3.06V : R1 = 270Ω, R2 = 390Ω
3.06V : R1 = 470Ω, R2 = 680Ω
3.08V : R1 = 150Ω, R2 = 220Ω
3.13V : R1 = 220Ω, R2 = 330Ω
3.14V : R1 = 390Ω, R2 = 560Ω
3.18V : R1 = 240Ω, R2 = 390Ω
3.25V : R1 = 150Ω, R2 = 240Ω
3.28V : R1 = 240Ω, R2 = 390Ω
3.37V : R1 = 330Ω, R2 = 560Ω
3.43V : R1 = 270Ω, R2 = 470Ω
3.43V : R1 = 390Ω, R2 = 680Ω
3.43V : R1 = 470Ω, R2 = 820Ω
3.47V : R1 = 220Ω, R2 = 390Ω
3.50V : R1 = 150Ω, R2 = 270Ω
3.54V : R1 = 180Ω, R2 = 330Ω
3.55V : R1 = 390Ω, R2 = 680Ω
3.70V : R1 = 240Ω, R2 = 470Ω
3.82V : R1 = 180Ω, R2 = 390Ω
3.83V : R1 = 330Ω, R2 = 680Ω
3.84V : R1 = 270Ω, R2 = 560Ω
3.88V : R1 = 390Ω, R2 = 820Ω
3.91V : R1 = 470Ω, R2 = 1K
3.92V : R1 = 220Ω, R2 = 470Ω
3.96V : R1 = 180Ω, R2 = 390Ω
4.00V : R1 = 150Ω, R2 = 330Ω
4.02V : R1 = 390Ω, R2 = 820Ω
4.17V : R1 = 240Ω, R2 = 560Ω
4.33V : R1 = 150Ω, R2 = 390Ω
4.36V : R1 = 330Ω, R2 = 820Ω
4.40V : R1 = 270Ω, R2 = 680Ω
4.43V : R1 = 220Ω, R2 = 560Ω
4.44V : R1 = 470Ω, R2 = 1.2K
4.46V : R1 = 390Ω, R2 = 1K
4.50V : R1 = 150Ω, R2 = 390Ω
4.51V : R1 = 180Ω, R2 = 470Ω
4.63V : R1 = 390Ω, R2 = 1K
4.79V : R1 = 240Ω, R2 = 680Ω
5.04V : R1 = 330Ω, R2 = 1K
5.05V : R1 = 270Ω, R2 = 820Ω
5.10V : R1 = 390Ω, R2 = 1.2K
5.11V : R1 = 220Ω, R2 = 680Ω
5.14V : R1 = 180Ω, R2 = 560Ω
5.17V : R1 = 150Ω, R2 = 470Ω
5.24V : R1 = 470Ω, R2 = 1.5K
5.30V : R1 = 390Ω, R2 = 1.2K
5.52V : R1 = 240Ω, R2 = 820Ω
5.80V : R1 = 330Ω, R2 = 1.2K
5.88V : R1 = 270Ω, R2 = 1K
5.91V : R1 = 220Ω, R2 = 820Ω
5.92V : R1 = 150Ω, R2 = 560Ω
5.97V : R1 = 180Ω, R2 = 680Ω
6.04V : R1 = 470Ω, R2 = 1.8K
6.06V : R1 = 390Ω, R2 = 1.5K
6.32V : R1 = 390Ω, R2 = 1.5K
6.46V : R1 = 240Ω, R2 = 1K
6.81V : R1 = 270Ω, R2 = 1.2K
6.92V : R1 = 150Ω, R2 = 680Ω
6.93V : R1 = 330Ω, R2 = 1.5K
6.94V : R1 = 180Ω, R2 = 820Ω
7.02V : R1 = 390Ω, R2 = 1.8K
7.10V : R1 = 470Ω, R2 = 2.2K
7.33V : R1 = 390Ω, R2 = 1.8K
7.50V : R1 = 240Ω, R2 = 1.2K
8.07V : R1 = 330Ω, R2 = 1.8K
8.08V : R1 = 150Ω, R2 = 820Ω
8.19V : R1 = 270Ω, R2 = 1.5K
8.30V : R1 = 390Ω, R2 = 2.2K
8.43V : R1 = 470Ω, R2 = 2.7K
8.68V : R1 = 390Ω, R2 = 2.2K
9.06V : R1 = 240Ω, R2 = 1.5K
9.58V : R1 = 330Ω, R2 = 2.2K
9.77V : R1 = 220Ω, R2 = 1.5K
9.90V : R1 = 390Ω, R2 = 2.7K
10.03V : R1 = 470Ω, R2 = 3.3K
10.37V : R1 = 390Ω, R2 = 2.7K
10.63V : R1 = 240Ω, R2 = 1.8K
11.25V : R1 = 150 Ω, R2 = 1.2K
11.44V : R1 = 270Ω, R2 = 2.2K
11.48V : R1 = 330Ω, R2 = 2.7K
11.67V : R1 = 180Ω, R2 = 1.5K
11.83V : R1 = 390Ω, R2 = 3.3K
12.40V : R1 = 390Ω, R2 = 3.3K
12.71V : R1 = 240Ω, R2 = 2.2K
13.75V : R1 = 330Ω, R2 = 3.3K
15.31V : R1 = 240Ω, R2 = 2.7K
16.25V : R1 = 150Ω, R2 = 1.8K
16.53V : R1 = 270Ω, R2 = 3.3K
16.59V : R1 = 220Ω, R2 = 2.7K
18.44V : R1 = 240Ω, R2 = 3.3K
19.58V : R1 = 150Ω, R2 = 2.2K
20.00V : R1 = 220Ω, R2 = 3.3K
23.75V : R1 = 150Ω, R2 = 2.7K
24.17V : R1 = 180Ω, R2 = 3.3K
28.75V : R1 = 150Ω, R2 = 3.3K

Table R1 and R2

R2\R1150Ω180Ω220Ω240Ω270Ω330Ω370Ω390Ω470Ω
68Ω1.82V1.72V1.64V1.60V1.56V1.51V1.48V1.47V1.43V
82Ω1.93V1.82V1.72V1.68V1.63V1.56V1.53V1.51V1.47V
100Ω2.08V1.94V1.82V1.77V1.71V1.63V1.59V1.57V1.52V
120Ω2.25V2.08V1.93V1.88V1.81V1.70V1.66V1.63V1.57V
150Ω2.50V2.29V2.10V2.03V1.94V1.82V1.76V1.73V1.65V
180Ω2.75V2.50V2.27V2.19V2.08V1.93V1.86V1.83V1.73V
220Ω3.08V2.78V2.50V2.40V2.27V2.08V1.99V1.96V1.84V
240Ω3.25V2.92V2.61V2.50V2.36V2.16V2.06V2.02V1.89V
270Ω3.50V3.13V2.78V2.66V2.50V2.27V2.16V2.12V1.97V
330Ω4.00V3.54V3.13V2.97V2.78V2.50V2.36V2.31V2.13V
370Ω4.33V3.82V3.35V3.18V2.96V2.65V2.50V2.44V2.23V
390Ω4.50V3.96V3.47V3.28V3.06V2.73V2.57V2.50V2.29V
470Ω5.17V4.51V3.92V3.70V3.43V3.03V2.84V2.76V2.50V
560Ω5.92V5.14V4.43V4.17V3.84V3.37V3.14V3.04V2.74V
680Ω6.92V5.97V5.11V4.79V4.40V3.83V3.55V3.43V3.06V
820Ω8.08V6.94V5.91V5.52V 5.05V4.36V4.02 V3.88V3.43V
1kΩ9.58V8.19V6.93V6.46V5.88V5.04V4.63V4.46V3.91V
1.2kΩ11.25V9.58V8.07V7.50V6.81V5.80V5.30V5.10V4.44V
1.5kΩ13.75V11.67V9.77V9.06V8.19V6.93V6.32V6.06V5.24V
1.816.25V13.75V11.48V10.63V9.58V8.07V7.33V7.02V6.04V
2.219.58V16.53V13.75V12.71V11.44V9.58V8.68V8.30V7.10V
2.723.75V20.00V16.59V15.31V13.75V11.48V10.37V9.90V8.43V
3.328.75V24.17V20.00V18.44V16.53V13.75V12.40V11.83V10.03V

For example:

You need 4.5 volts from a 3 x AA 1.5 V battery in a series. But you have no them.

How to do it?

You have only LM317 and a lot of resistors. Yes! you can use them instead.

Look at the list above, in 4.5V voltage. We can use R1 = 150Ω, R2 = 390Ω.

It is easy, right?

LM317 heat sink calculator

What is the size of the heat sink enough?

LM317 is always hot while working. Though it has an over-temperature cut-out mode. But we should not release it too hot. We always install the heat sink.

Someone ask me. What size heat sink should we use? LM317 has a maximum temperature of 50 °C/W  without a heat sink.

I found this site, good for using LM317 heat sink calculator. Click here

The LM317 Heat sink, how big? GO to

You can find the LM317 on Amazon here if you’re interested.

Note: There are affiliate links on this post. This does not change the cost of the item for you. Thanks for your support.

For example LM317 circuit

We learn enough about LM317. Let’s take a look at it in action, hope you get the good circuit ideas.

First My Power Supply

LM317 Power supply

I built It as the first power supply. Though it is very old, we have still used them for more than 20 years. Why it is great like this?
Create: LM317 Power supply

Linear Selector Power supply Regulator

Selector voltage regulator LM317 circuits

Easy to select the ouput voltage regulator: 1.5V, 3V, 4.5V, 5V, 6V, 9V at 1.5A

30V Dual DC variable power supply
High voltage 0V to 60 volts at 1.5A and starts voltage at zero! good job.

Great DC power supply
High quality, 3A adjustable voltage regulator. Using LM317 and 2N3055 so easy and cheap. Adjust voltage in steps 3V, 6V, 9V, 12V. And In fine, 1.25V to 20V.

4 Lead Acid Battery charger circuits
See 4 LM317 Lead-acid battery charger circuits for 6V, 12V, and 24V battery. With automatic charging and full charged Indicator using TL431. Easy to build.

Dual power supply 3V,5V,6V,9V,12,15V
Dual power supply circuit,can select voltage levels 3V,5V,6V,9V,12,15V at 1A and -3V,-5V,-6V,-9V,-12V,-15V at 1A, use LM317 (positive) LM337(negative) […]

USB Battery Replacement
This is a USB 5V to 1.5V Step-Down Converter Circuit. When we use a Cheap MP3 Player which uses only one 1.5V AA battery as its power supply.

Gel cell battery charger circuit
It can charge any size of the Gel cell battery and extend the life of the Gel Cell battery. While the circuit is running, the LED indicates charging.

Nicad Battery Charger using LM317T
Here are Universal NiCd and NiMH battery charger circuits. It uses the LM317 Control Current of less than 300mA, Size battery 2.4V,4.8V,9.6V. Low-cost circuit

Circuit ideas that you can get useful

GET UPDATE VIA EMAIL

I always try to make Electronics Learning Easy.

Get Ebook: Simple Electronics Vol.4

15 thoughts on “LM317 voltage regulator: Pinout, CALCULATOR, and circuits”

  1. Dear Sir/Ma

    We are spare part supplier in Nigeria,
    Company name with address
    DE- ACCORD SYNERGY CONCEPT NIG LIMiTED. NO6, Oba Amusa Avenue Sumbol Bus Stop, Lagos Nigeria.

    Kindly quote us for the bellow items for our customer.

    LM78S40    (Universal Switching Regulator) 2nos

    LM7805      (Voltage Regulator) 2nos

    Your best price and delivery

    Best Regards

    Abiodun Ogundipe

    +23435766398

    Reply
  2. sir i want a simple voltage regulator for increasing and decreasing the small halogen bulb
    input voltage is 12v AC and out put 6v dc with variable pot using matal cap transistor like LM317K.

    Reply
  3. Elkido.
    I want to make a power adapter Charger 100-240v input
    19-volt dc output. Can i use the typical circuit diagram above?
    please forward to me the required component and the circuit diagram to build this project.

    Reply
    • I understand that you will use an AC adapter as a 12V battery charger. It can do it. We can use the circuit to reduce the voltage from 19V to 13.5V. Because If we charge the battery with 19V. It will be overcharging, with a high current.

      My daughter made this circuit it works very well.
      https://www.eleccircuit.com/gel-cell-battery-charger-circuit/
      It is cheap and easy with LM317 We use it for 12V 3A to 7A battery.

      If it is a higher battery we need to use a long time charging or change the circuit to a higher current.

      God bless you.

      Reply

Leave a Comment

This site uses Akismet to reduce spam. Learn how your comment data is processed.
