2N3055 Amplifier circuit with PCB, 50W to 60W

These are 4 simple 50w OTL audio amplifier circuits using 2N3055 as main parts. We can build easy and cheap. It’s durable and very loud sound, Not needed speaker Protection. We use all transistors and LM3900 below.

50W integrated audio amplifier circuit using 2N3055

This is 60W RMS OTL integrated audio amplifier circuit using 2N3055 and normal transistor.

It is so cheap and can build easily. And, It’s durable and very loud sound for mini PA

From the previous project, some people say that Not suitable for a small party. Because of soft and does not durable.

50W RMS OTL integrated audio amplifier circuit with tone control

So I highly recommend this project are The classic OTL integrated amplifier that power output 55 watts.

The its feature is loudly than other circuits and watts are equal. the speaker has durability and be difficulty damage.

And build easier OCL amplifier.

Although some people say that it is not good bass. But if you try, you may like it.

How it works

Look at a block diagram of this project.

As show Figture fo this circuits.

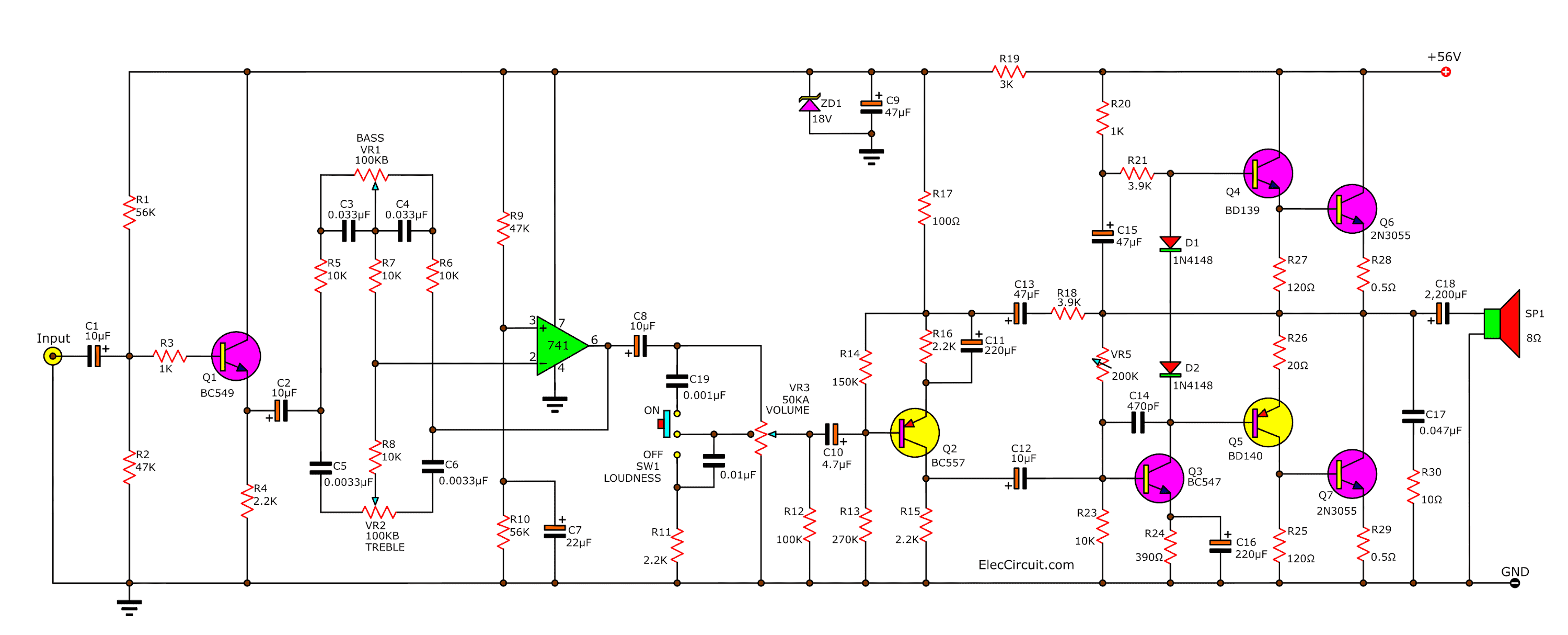

Figure 1 the complete circuits of circuit diagram.

They consists of two large parts are the main amplifier and tone control circuit Same as the previous circuit.

50W OTL Amplifier usiing 2N3055

The tone control circuit consists of Q1-transistor and IC1( op-amp IC-LM741).

The signal input will enter to C1 and R3 into base of Q1. Which acts as matching between the input circuit and tone control-IC1.

VR1 is used to adjust the bass sound.

VR2 is used to adjust the treble sound.

Which this circuit can adjust the bass/treble to upper or lower up to 18 dB.

The output from the tone control will be entered through C8-capacitor to the level sound controller circuit is VR3-potentiometer and the loudness controller.

The signal from volume will enter through to base of transistor-Q2.

To amplifier the signal higher, that enter to pre driver Q3.

To drive the driver circuit with Q4, Q5 and the both power transistors Q6, Q7 next.

How to builds

Since the circuit is designed as well. So easy to create. However, to the best results. Should perform the following.

Single side PCB layout of 35W to 50W OTL amplifier circuit

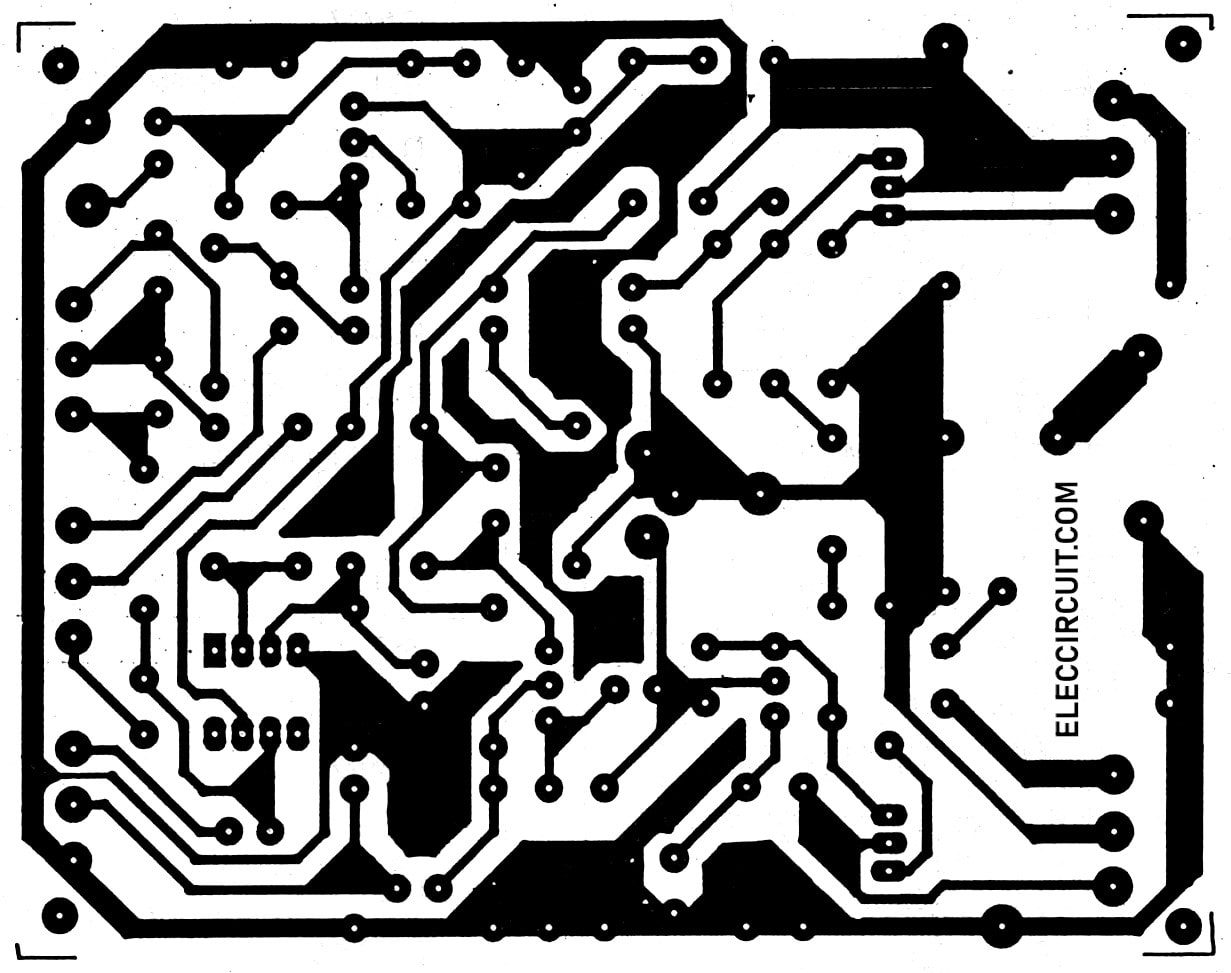

The Figure 2 Actual-size, single-sided PCB layout for the circuit.

the-component-layout-for-the-pcb


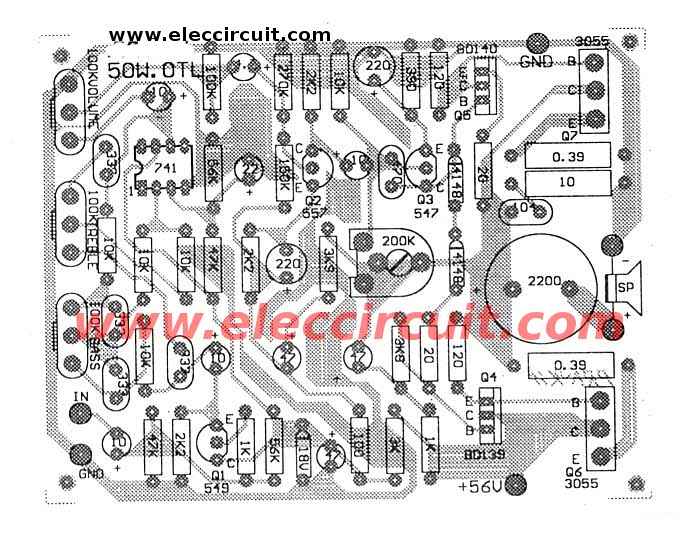

Figure 3 the Component layout for the PCB

1. Check the correct finished in putting all components.
2. Do not connect the power transistor.
3. Use the voltmeter measures at 2 points C17, C18 compare to ground.
4. connects the positive 56 volts to this circuit and then adjust VR4 until read meter about 28 volts.
5. connects properly the power transistors to the circuit

Also: 100w amplifier circuit with PCB

The power supply circuit

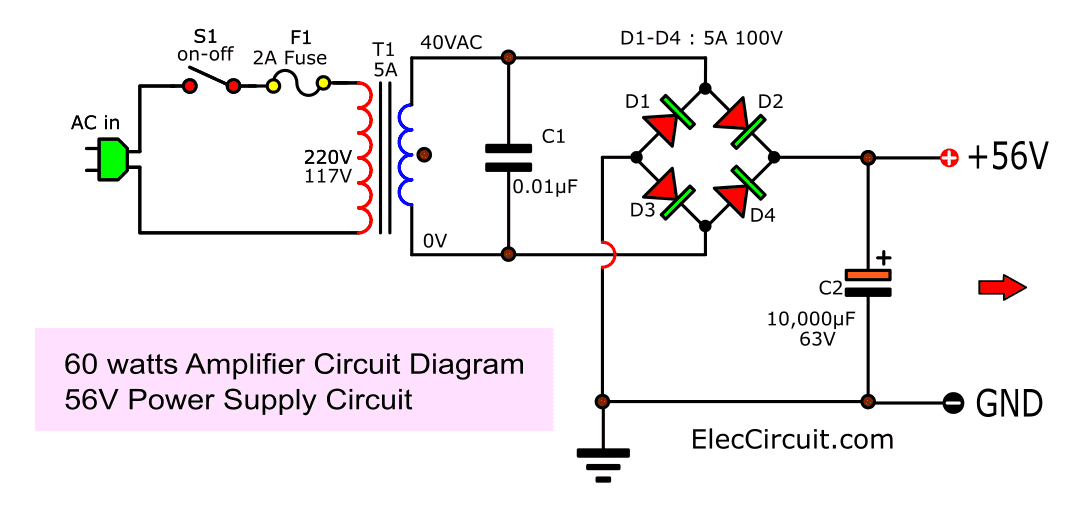

In the figure 4, The voltage 56V for this circuit. We are derived from the bridge rectifier to change from AC40V. to as DCV. then pass the filter capacitors , and then will obtained is the 56VDC.

56V Power supply for 50W amplifier integrated audio amplifier circuit


Figure 4 The power supply circuit

The transformer that use for the mono type, should use size is 2A and size under 3A in the stereo system.

Read next: 4 transistor audio amplifier circuit

The detail of parts list

IC1: LM741, General Purpose Op-Amp
Q1, Q3: BC548, 45V 100mA NPN Transistor
Q2: BC557, 45V 100mA PNP Transistor
Q4: BD139, 80A 1.5A PNP transistor.
Q5: BD140, 80V 1.5 PNP Transistor
Q6, Q7: 2N3055 100V, 15A, 115W, >2,5MHz NPN transistor
ZD1: 18V 0.5W Zener Diode
D1, D2: 1N4148, 75V 150mA Diodes

0.25W Resistors
R1, R10: 56K
R2, R9: 47K
R3, R20: 1K
R4, R11, R15, R16: 2.2K
R5, R6, R7, R8, R23: 10K
R12: 100K
R13: 270K
R14: 150K
R17: 100 ohms
R18, R21: 3.9K
R19: 3K
R20: 1K
R22, R26: 20 ohms
R24: 390 ohms
R25, R27: 120 ohms
R28, R29: 0.5 ohms 1W
R30: 10 ohms 1W

Potentiometers
VR1, VR2: 100KB
VR3: 50KA CT
VR4: 200K PRESET

Electrolytic Capacitors
C1, C2, C12: 10uF 16V
C7, C8: 22uF 16V
C9, C13, C15: 47uF 16V
C10: 4.7uF 16V
C11, C16: 220uF 16V
C18: 2,200uF 35V

Polyester Capacitor
C3, C4: 0.033uF
C5, C6: 0.0033uF
C14: 470pF
C17: 0.047uF
C19: 0.001uF
C20: 0.01uF

The detail parts of the power supply
T1: Transformer Secondary for 40 volts 3A-5A. ( for a stereo system)
D1-D4: Bridge diode >5A.200V
C1: 0.01uF 100V, Polyester Capacitor
C2: 10,000uF 63V, Electrolytic Capacitors

What is more?

Is it too high power? You want lower, right?

Try below.

30W OTL amplifier working using 2N3055

Friends may like old power amplifier circuits. Today I will show you the integrated OTL power amplifier circuit with PCB,  35W.  Using 2N3055 is the main component.

How it works

It is an interesting circuit. Because of moderately sound 35 watts at the 8 ohms loudspeakers.

It is the OTL type, so it is easy to build, economize, and durable.

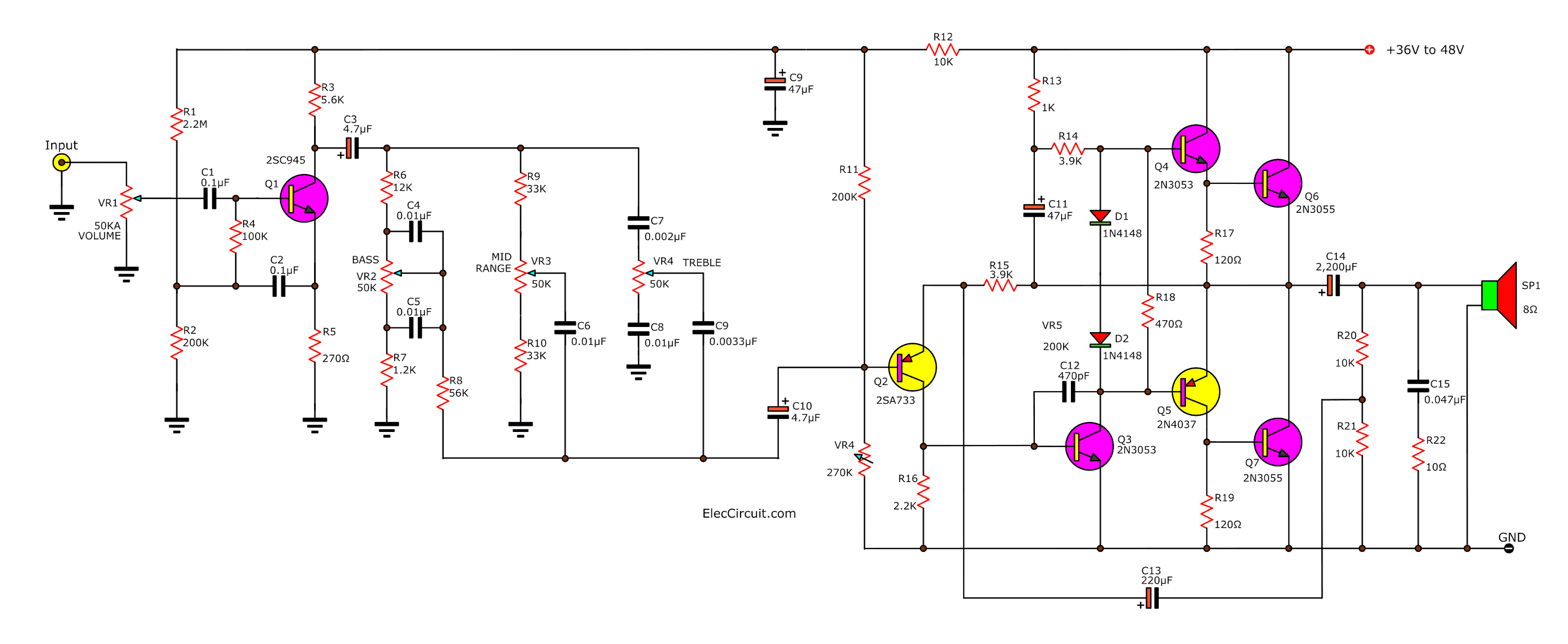

35W OTL Integrated amplifier using 2N3055

Besides it still has the full function to adjust the output sound. Such as  Volume, Bass, Treble, Mid Range, etc.

Then, it is convenient for you, who is a novice want to build a power amplifier circuit.

Keep used by oneself and I have model PCB simply give friends.

PCB layout of Integrated OTL amplifier 35W using 2N3055

The 36V power supply of 35 watts amplifier

PCB layout of 35 watts to 45 watts amplifier using 2N3055 transistor

This is a 36V to 50V Power supply circuit for 35 Watts to 50 watts amplifier circuit.

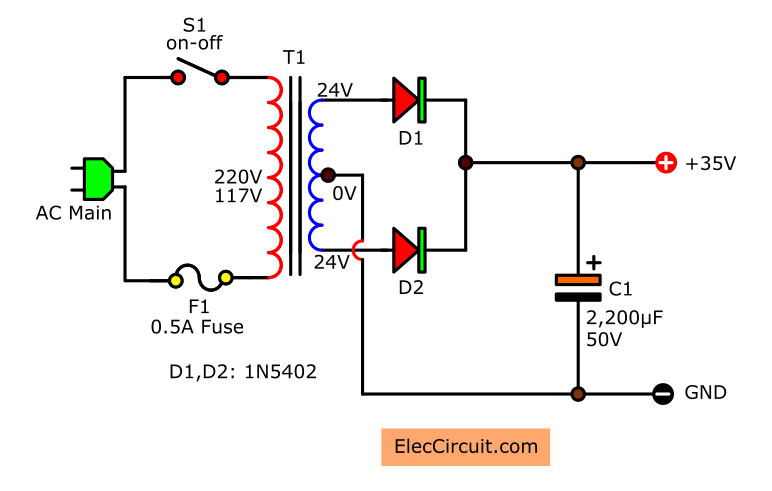

36V to 48V DC Power supply circuit

Get convenient in building with Have a good time. With the sound of music.

Selecting and substituting components

These circuits are highly flexible. I believe that he has good electronic skills. But I want to review him about the transistor substitution number.

And pinouts of different transistors. Look at below.

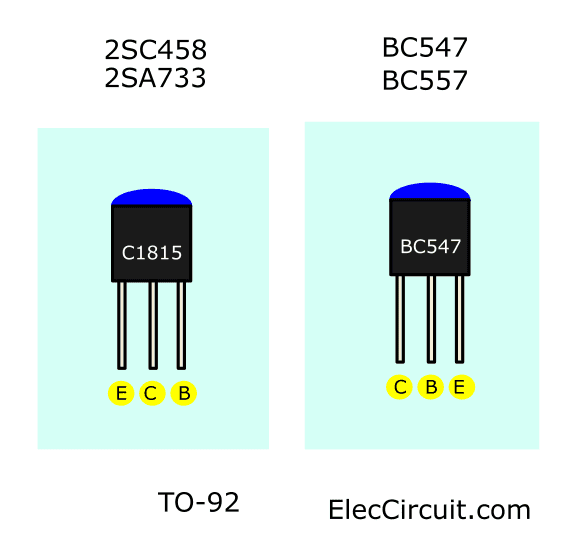

The Small transistor. Look at Their Pinout of TO-92:

  • 2SC458, 2SC945, 2SC1815 and more.
  • BC547, BC557

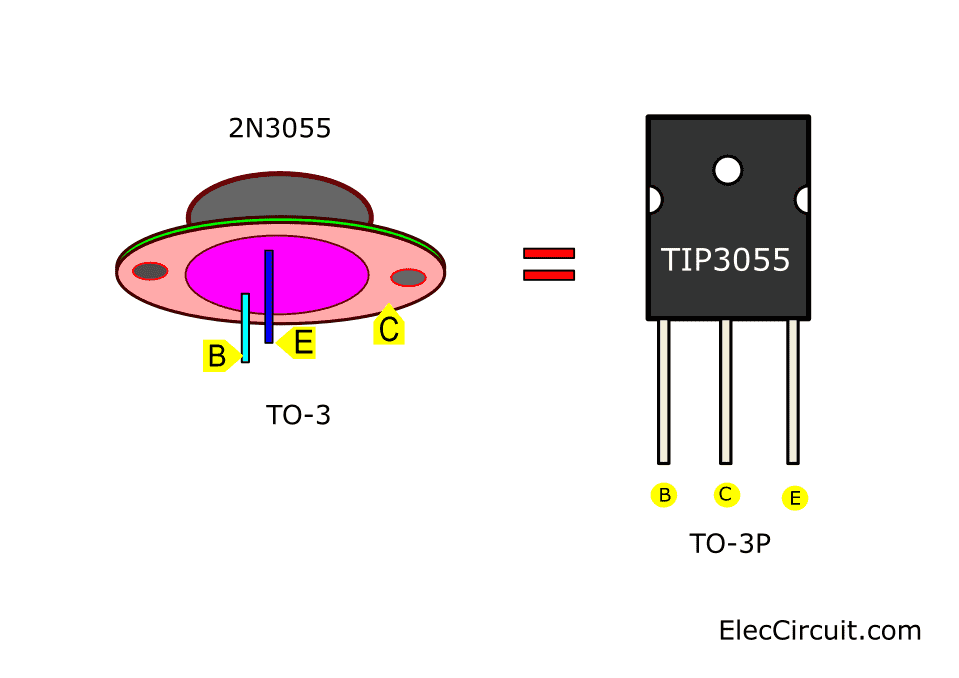

Power transistor 2N3055. Look at the pinout of the TO-3 transistor.

Use TIP3055(TO-3P). We easily install it on the heatsink.

Look at TO-39 and TO-225 transistors.

Sometimes we can use 2N3053 instead of BD139. And, 2N4037 instead of BD140.

50W Main audio Amplifier circuit OTL using 2N3055

50W OCL Audio Power Amplifier using 2N3055

If you are seeking power Amplifier at the loud good sound, durable and economize. We recommend the   50 watt  audio amplifier  circuit using 2N3055.  Because, it use the equipment that seek good easy and build not difficult with. Many you who tell amp OTL the sound is not good. Me chest edge that be not the loud sound is excellent.

Then like to use general ( in the past ) although in contain divide still have use. I like it fining decorates the circuit.

Just you feed power supply 50V 2A also the work has already and a loudspeaker should use 8ohm 12 inc. sizes. Besides still model PCB for the convenience of friends. Request have fun Power Amplifier OTL 50Watt , please sir.

60 watt/ 50 watt  audio amplifier circuit with PCB using 2N3055

60W/ OTL Power Amplifier Circuit using 2N3055 with PCB

This is Power Amplifier OTL 60W circuit. It is the circuit that gives bland excellent sound, because of using the transistor entirely (Hot part 2N3055 x 2) have no IC mix. Then may build difficult go to small but for what is the experienced person may have no a problem. For the sound power that pay to come out about 60W at 8ohm size loudspeakers s build to sing can bail 12-inch sizes comfortable. About story of the voltage supply for this circuit as a result of the important. Should use the pressure about 30V the trend doesn’t lower 3A. Other details see in circuit picture.

Circuit diagram

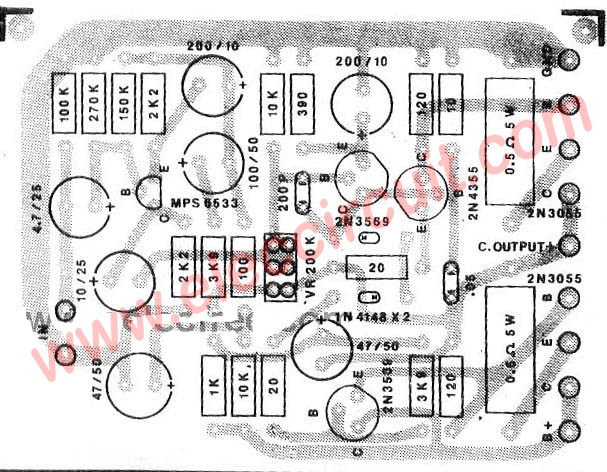

PCB layout of Power Amplifier OTL 50W using 2N3055


PCB layout

Next ideal be take LM3900 as differential IC so easy circuit to build.

50 watts/ OTL Power Amplifier circuit using LM3900, 2N3055

50 watts/ OTL Power Amplifier circuit using LM3900, 2N3055

This be power amp OTL 50Watt use IC LM3900 and 2N3055 x 3pcs transistors to pillar equipment. Follow very circuit keeps to are Class ab then have a voice good loud. When , be amp OTL you then are certain that build easy use power supply the group is one 70V sizes by must use Current low 2Amp go up. Then have a voice good another thing you will like that amplifier. This durability do not make a loudspeaker a lose easy. The detail is other see in the circuit and model PCB next.

We like a 2N3055 Power Amplifier Circuit. Although it is the very ancient transistors, but it still have a lot of classic and very good sound. It is popular forever, very cheap, easy to find, easy to use. We recommended the 2N3055 power amplifiers circuit with PCB list below!

30W OCL Integrated Amplifier with PCB

If you want to create the integrated power amplifier project for the first time.In addition, we will use ICs because It’s convenient and modern. But I often recommend this project 2N3055 amplifier circuit. The output power is 30 watts RMS, using all transistors. You may like it.

Read more: 30w OCL integrated amp with PCB

40W OCL transistors Main Amplifier circuit

This circuit is one that stands out for ages over 40 years, with sound quality that is hard to find compared be other circuits. If you experimental build or ask people who try already built. Will believe that this is not an exaggerated statement more than true. Read more: 40W transistors audio amplifier circuit

50W OCL main amplifier using LF351-2N3055-MJ2955 with PCB

This 50W OCL main amplifier circuit has high quality,economical and also easy to build too. Because it is designed simple, It can be easily created in your friends, An electronics rookie. And cheap when compared to other speakers, the as same volume level.

100W power amplifier OCL
