CD4013 Dual D-type Flip-flops datasheet

The CD4013 or IC-4013 is a CMOS logic chip with two D-Type (DATA) Flip-flops. A clock pulse flow to C (clock pin), will store the data at the D input. Connect clock and a both Q output to make a toggle flip-flop for counting.

For example use them:1HZ Standard digital clock

inside-4013
Figure 1 block diagram inside CD4013-Dual D-type Flip-flops

The importance Pins look at the table below.
1.) Pin 14 is a positive power supply and pin 7 is a ground.

The power supply range of 3 volts to 16 volts and Maximum supply voltage at pin 14 must not much than 18 volts.

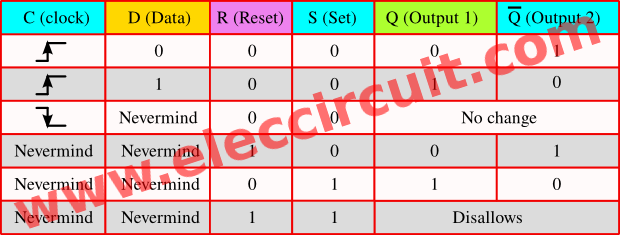

truth-table-of-4013
See in the truth table of 4013

1. The first column in the truth table is for the clock input.
They have three states are (1). The rising edge of a clock pulse.
(2.) the falling edge of a pulse, and (3.) Nevermind


The 4013 responds only to a rising edge of a pulse.

Notice that both the R(reset) and S(set) inputs can both be “0” (Low) But not 1 (High-disallowed)

Both the output pin has always different states. If Output 1 is “0” then output 2 is “1”.


CD4013 at Amazon.com

Many 4013 circuits

We can use 4013 in many ways. Look at below for example how to use them.

Divide by two

Divide by 2 using 4013
When we enter a signal with a high frequency to the input of IC-4013. It will divide the frequency by two. For example, you enter 1KHz frequency. Then, the output is 500Hz in the same waveform.
