Surge protection circuit for power supplies

The surge protection circuit is important. If there is a thunderstorm, the power goes out or the extreme power surges.

Sometimes, our electrical appliances may damage easily. A little high voltage surge may make it loses.

We can protect this problem with this circuit. When we switch on the appliances. The circuit will delay turning on it.

For example, we set the timer for 3 seconds. After 3 seconds the circuit will turn on load right now.

Simple surge protection circuit using SCR
Simple surge protection circuit using SCR

This is a special circuit. It uses SCR that working like the relay. It is a good idea. Because of 2 advantages! First, fast switch on-off. Second, use low current in a trigger.
But it may difficult than a relay.

How the circuit works
In the circuit, the voltage of the power supply into the Supply voltage in the terminal.

The circuit is working. But the SCR is still stopping. Why?

The input current flows through R1 to charges to C1. In the first time, the voltage across C1 is 0V. After that, the voltage will rise up partially.

Until C1 is fully charged. So, the voltage across it is “high” state.

The current will flow through ZD1 to trigger the gate of the SCR. It turns on to connect the supply voltage input to output Delayed supply out.

Why we use it
ZD1—6V Zener diode will limit the voltage to gate of SCR, not too over!
D1,D2—diodes—protect the spike voltage backward.
C1—to set time delay.
R2 and C2 in parallel—reduce the noise to gate of SCR.

While SCR is working it may be hot. It requests a large heat sink.

‘Small surge protector for AC load’ »

Parts you will need
SCR1—TIC106D, 5A 400V SCR Thyristor; Quantity:1
D1,D2—1A 50V diodes; Quantity:2
ZD1—6V 0.5W Zener Diode; Quantity:1
R1,R2—100K 0.5W Resistors; Quantity:2
C1—22uF 50V Electrolytic capacitor; Quantity:1
C2—1uF 50V Electrolytic capacitor; Quantity:1

4011 Time Delay for Surge protector

This is a simple time delay relay circuit. It is suitable for the surge protection. It can control more loads with a relay.

When pressing the push button switch, the time delay starts. But the relay output stops now. It will run after time setting.

So it can prevent equipment damage from the surge or spike voltage.

How it works
We want a simple and small circuit. So we use the main component, 4011 NAND gate CMOS.
It is easy to do.

Time Delay for Relay using CD4011


In the circuit, we use only one NAND gate of 4011. And we connect pin 1 and pin 2—input of IC— together, so it becomes to the inverter gate.

If we press S1, the current from a power supply flows through R1. And It slowly changes to C1. The voltage across pin 1, pin 2 and ground slowly rises up, too.

Since it is the inverter, so output pin 3 is “high” state. And the relay still turns off. Because it connects across the output and the positive supply.

After that, the current changes to C1 full. While voltage across input is a high state.

So The output is low, the relay pulls in or turns on that.

The time delay can set by R1 and/or C1.

The current of circuit is limited by type of relay that use.

Figure 1 Time delay for relay using CD4011

Calculate the discharge time delay Can be calculated by the equation
T = R1 x C1 x 0.85
By that:
T is the period of the delay in seconds.
R1 is the resistance in ohms.
C1 is the capacitance in uF.

The current of circuit is limited by type of relay that use.

Digital trigger—You can use a general NPN type transistor instead of the switch-S1. Thus, the circuit can be used to trigger signal from a computer or other circuit.

Power relay—If you want to apply to the higher voltage relays. Just need to add the output driver transistor. To be able to more load.

How to builds
This project does not use many components so can assemble on the universal PCB board. Then, the wiring and various components show the example in Figure 2.

You should assemble carefully the polarity of the electrolytic capacitors and Pin of the IC1 correctly.

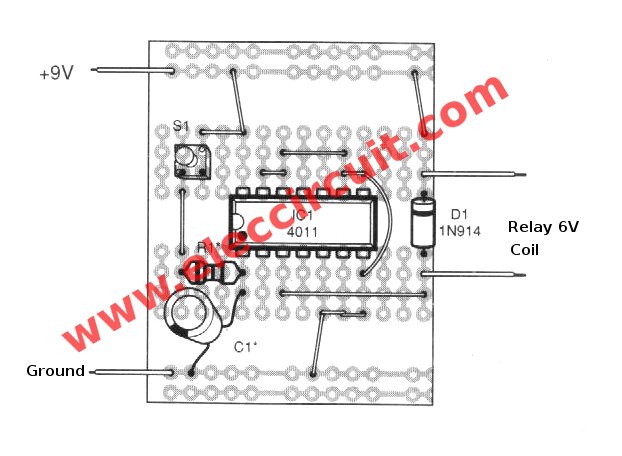

components-layout-of-this-circuit
Figure 2 The components layout of this circuit.

You will need components list
R1—See text — 1 pcs.
C1—See text — 1 pcs.
IC1—CD4011 Quad 2-Input NOR Buffered B Series Gate
D1—1N914 or 1N4148 —Silicon diode —1 pcs.
RL1—Relay 6V—1 pcs.

Note:
If really using you can remove the S1 with normal wire.
