Power Supply derives 5 and 3.3V from USB port

Advertisement

Design Ideas / The circuit in Figure 1 derives its power from a USB port and produces 5 and 3.3V supply rails for portable devices, such as digital cameras, MP3 players, and PDAs. The circuit allows the port to maintain communications while, for example, charging a lithium-ion battery. IC2 boosts the battery voltage, VBATT, to 5V, and IC3 buck-regulates that 5V output down to 3 Read More

Related Links
More circuit about switching power supply
More circuit about 5V power supply
More circuit about USB port

Advertisement

Be the first to comment - What do you think?  Posted by admin - September 7, 2007 at 11:32 pm

Categories: Switching power supply   Tags: , , ,

Logic PSU with Overvoltage Protection by IC 7805

Circuit : Andy Collinson
Email: anc@mitedu.freeserve.co.uk

Description:
A simple 5 Volt regulated PSU featuring overvoltage protection.

overvoltage_circuit

Logic PSU with Overvoltage Protection by IC 7805

Notes:
The 5 volt regulated power supply for TTL and 74LS series integrated circuits, has to be very precise and tolerant of voltage transients. These IC’s are easily damaged by short voltage spikes. A fuse will blow when its current rating is exceeded, but requires several hundred milliseconds to respond. This circuit will react in a few microseconds, triggered when the output voltage exceeds the limit of the zener diode.
This circuit uses the crowbar method, where a thyristor is employed and short circuits the supply, causing the fuse to blow. This will take place in a few microseconds or less, and so offers much greater protection than an ordinary fuse. If the output voltage exceed 5.6Volt, then the zener diode will conduct, switching on the thyristor (all in a few microseconds), the output voltage is therefore reduced to 0 volts and sensitive logic IC’s will be saved. The fuse will still take a few hundred milliseconds to blow but this is not important now because the supply to the circuit is already at zero volts and no damage can be done. The dc input to the regulator needs to be a few volts higher than the regulator voltage. In the case of a 5v regulator, I would recommend a transformer with secondary voltage of 8-10volts ac. By choosing a different regulator and zener diode, you can build an over voltag trip at any value. I have a simulated transient graph of this over voltage protection circuit in the Design section.

Related Links
Protection power supply
More Circuit about IC 7805 psu circuit
Digital voltage protection circuit

Uninterruptible Alarm Power Supply by 7805
5V breadboard mini PSU with 7805
Regulator 5V,6V,9V,12V 1A By IC 7805,7806,7809,7812
7805+Mj2955 power supply 5V 5A for digital circuit.
Regulator 5V 3A by IC LA5105

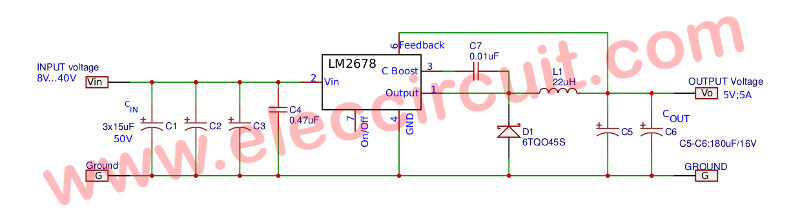

5V 5A switching regulator for digital by LM2678

Be the first to comment - What do you think?  Posted by admin - July 28, 2007 at 3:44 pm
